ganban

git-based Kanban TUI

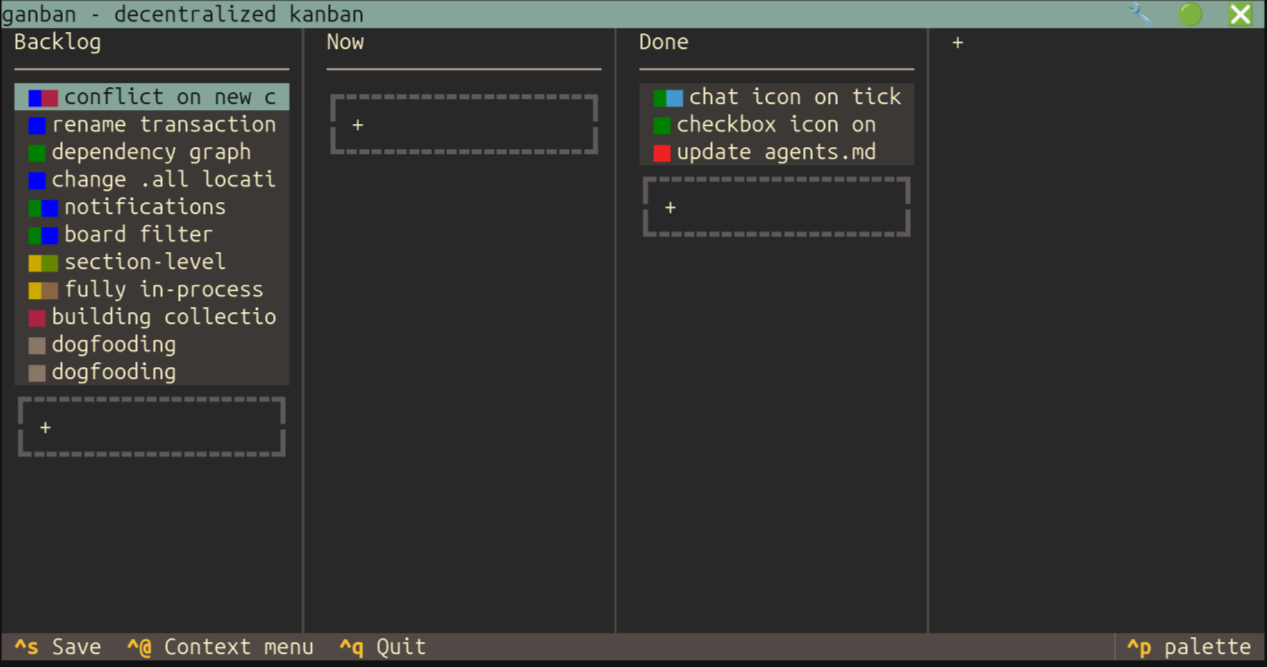

screen

What is this?

ganban is a Kanban board that lives in git. The data sits in an orphan branch, so web UIs shouldn’t offer to merge it (but they do). In ganban, we don’t need to rely on external services and API keys because our tasks stay with the code. It’s all just text files in dirs.

The board’s columns are in directories named id.slug like 1.backlog. They’re ordered alphanumerically so the TUI has the same order as ls -l. The app renumbers them for you if you move columns around, or if you used letters or something other than numbers as an id.

Cards in a column are symlinks to Markdown docs in the ./.all dir, which holds the actual data. These links are ordered in the same way as cards. Keeping them in .all gives them stable IDs so you can link to them like you would in a commit message. You don’t need to remember ln’s weird syntax because ganban rounds up stray files and replaces them with a link.

The first # heading in a document overrides the title of a card. Other # headings or ## subheadings become sections, and the TUI can choose a custom editor for sections with special names. This is how comments and task lists work, they’re just markdown with a custom renderer.

You can add metadata like labels, a due date, assigned - or anything else you like - using front-matter. A full YAML editor is provided for any custom stuff, and some sensible editors are provided for the defaults.

Metadata works on columns too, you just edit the index.md file in their dir, which you can use to override the column’s style. The board itself has a title and settings in its front-matter, which is how we link committers with multiple emails to one identity, or give yourself an avatar like 🧔 or 🐴.

When running as a service, ganban syncs from remotes that the repo has, periodically pushing to upstream and resolving any conflicts the best it can. This creates a kind of mesh network for your board, syncing in the background without the need for 3rd party services.

Ganban doesn’t force you to use its TUI, there’s a web UI if you prefer that sort of thing. If you’re a bot or a script, or UIs just aren’t for you, then you can use the CLI instead; see ganban --help. If you don’t want any kind of interface then bring your own text editor and commit directly to git.

It can sync in the background with ganban sync -d, or, if the daemons haunt you, just omit the -d for a one-time sync.

Data Model

2 id="data-model">Data Model

Cards

Canonical card files live in .all/ with 3-digit numeric IDs:

.all/
  001.md
  002.md
  003.md

Card format:

---
whatever: put your metadata here
---
# Title

Main description goes here, displayed in the body. You can link to other cards
by ID like #1

## Notes

Subsequent sections become sidebar panels in the TUI.

## Comments

- [name](mailto:user@email): comments go here like this

Columns

Directories with 1-digit numeric prefix for ordering:

1.backlog/
2.in-progress/
3.done/

Board Layout

Cards appear in columns as symlinks with 2-digit position prefix:

1.backlog/
  01.fix-login-bug.md -> ../.all/001.md
  02.add-feature.md -> ../.all/003.md
2.in-progress/
  01.refactor-api.md -> ../.all/002.md

Numbering

Default digits: 3 for .all/, 1 for columns, 2 for symlinks.

Git Integration

2 id="git-integration">Git Integration

Reading/Writing Without Checkout

Operates on the ganban branch without checking it out, using git plumbing:

Multi-Remote Sync

Philosophy
